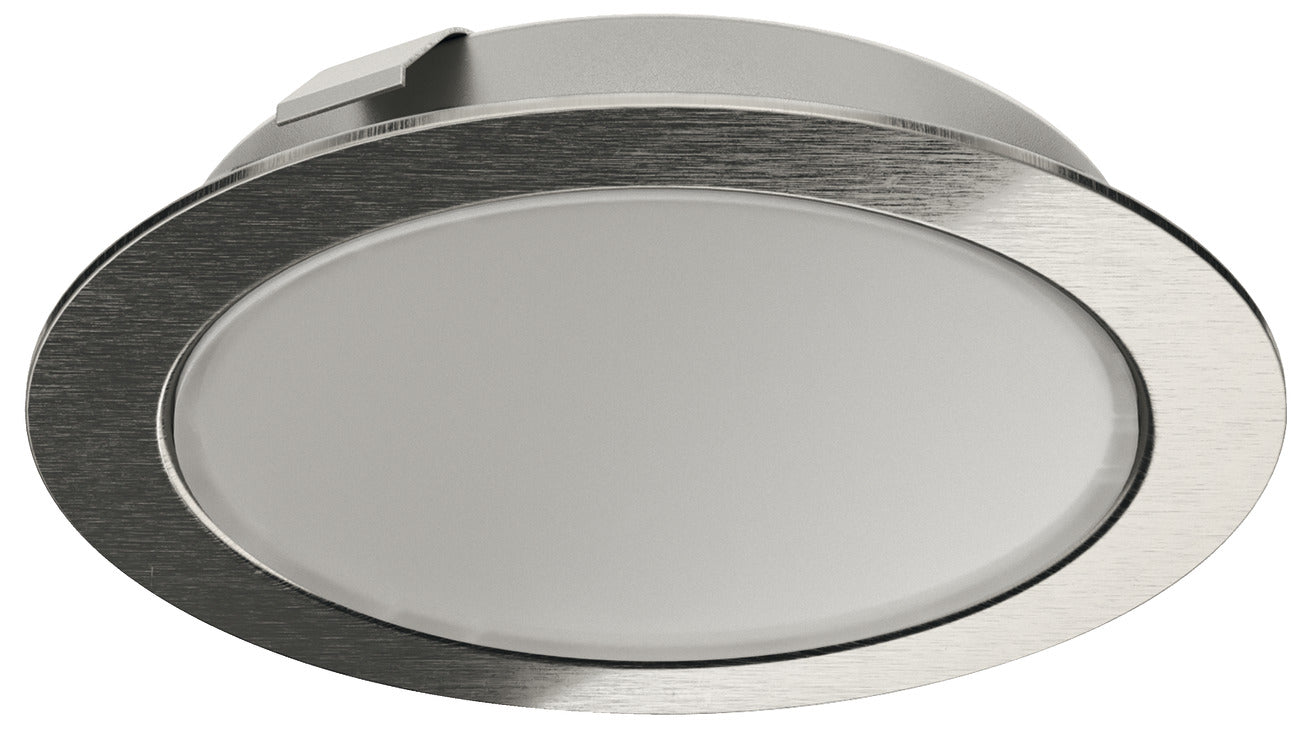

LED Downlight 12 V, Ø 65 mm Loox5 LED 2047 833.72.632
The powerful LED 2047 with frosted real glass cover makes a wide range of applications possible in furniture. The housing components are exclusively made from steel, providing good service as ambient lighting for years. The different mounting
variants and optional housing provide a great deal of flexibility during installation.
-

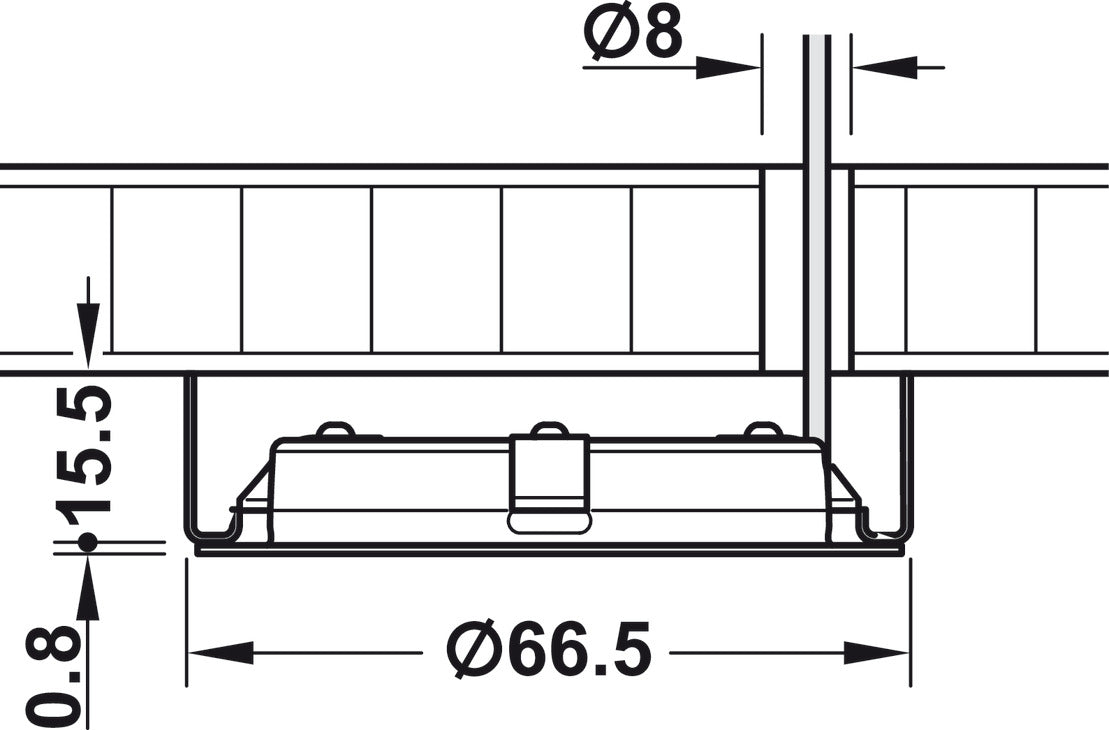

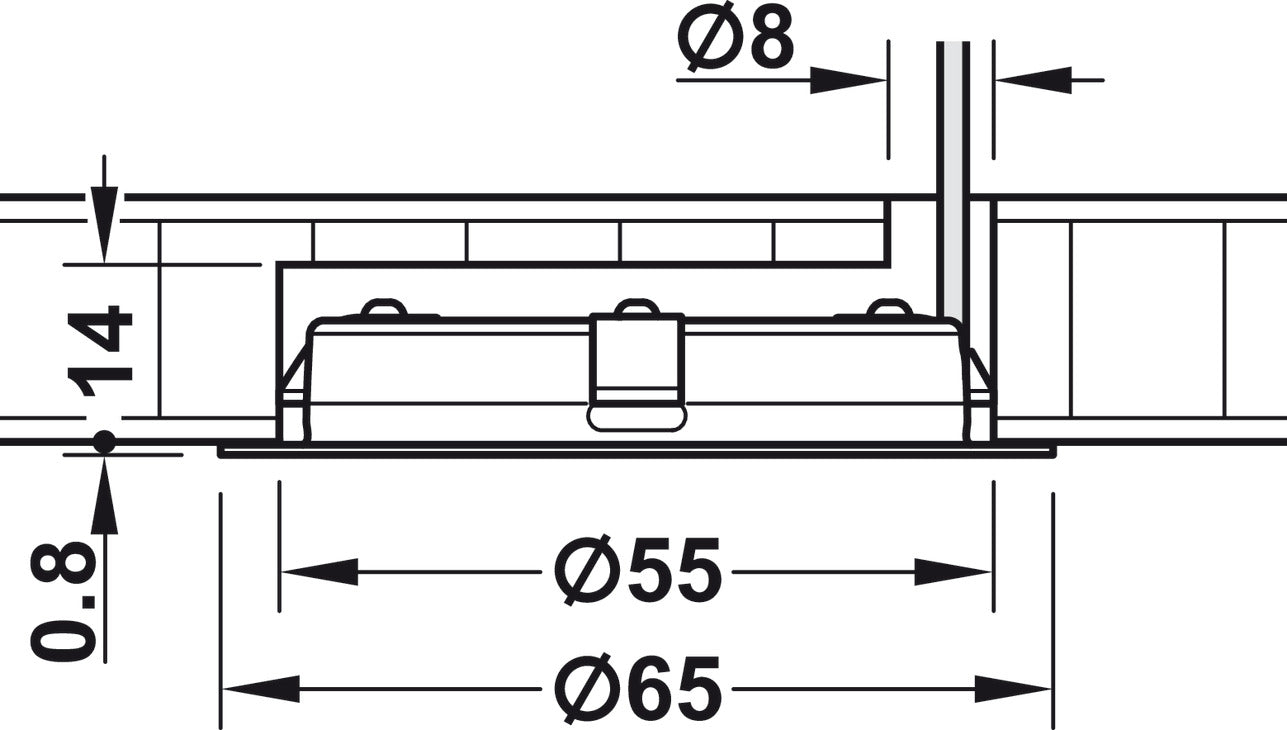

For recess mounting, press-fit in Ø 55 mm hole, order bezel separately
0.8 mm rim, min. 14 mm hole depth required
Nominal voltage
12.00 V
Wattage
3.00 W
Colour rendering index Ra
90
Drill hole Ø
55.00 mm
Model
LED 2047
Installation
For mounting in drilled hole and for clamp fixing, or for screw fixing
Energy efficiency class
G
Dimmable
yes
Area of application

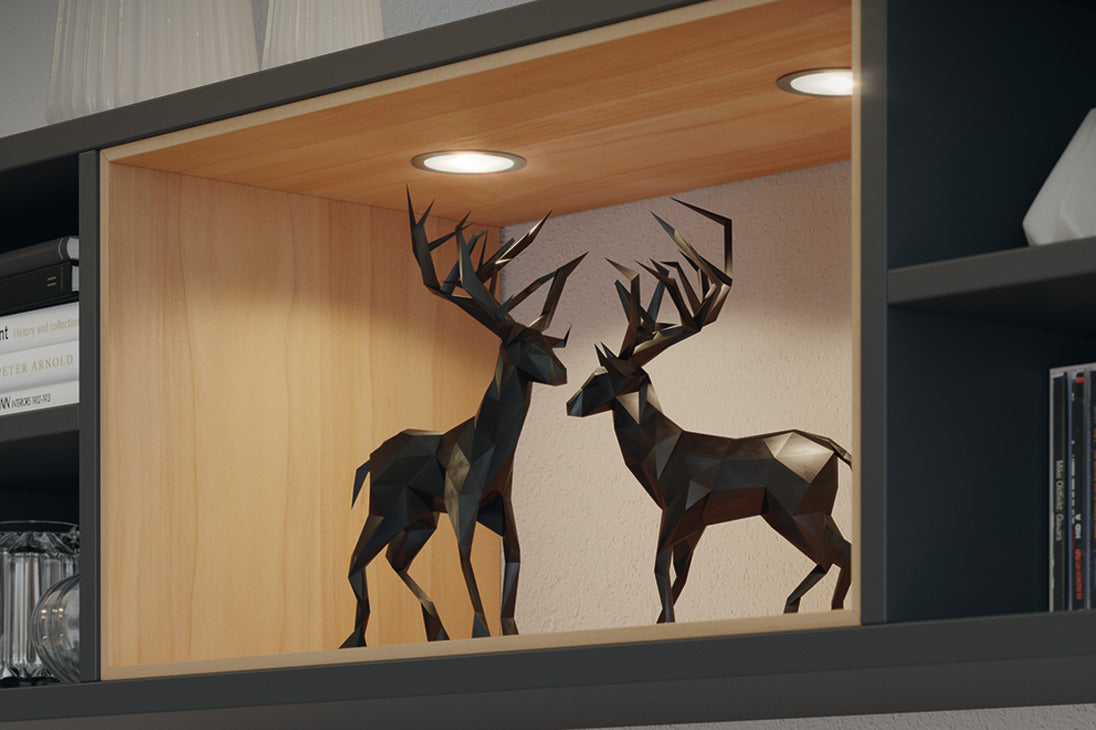

For display cabinets, shelving units and shelves
Housing material
Steel
Degree of protection
IP20
Cable length
2,000.00 mm
Order reference
Order Loox5 12 V driver, mains lead and bezel (if required) separately
Order switch separately
Supplied with
With 2.0 m lead with Loox5 12V connector
