Sensor Switch , Adjustable, Modular, Loox 833.89.334

€7.50

Switching function on/off soft, touchless or

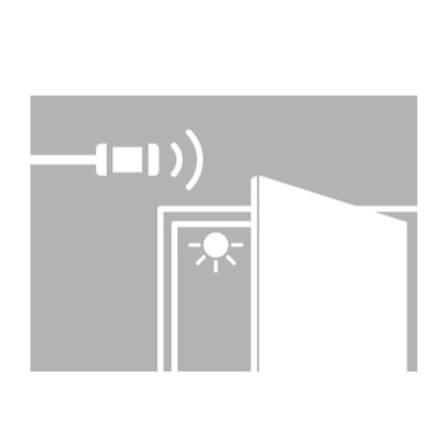

door open = light on,

door closed = light off

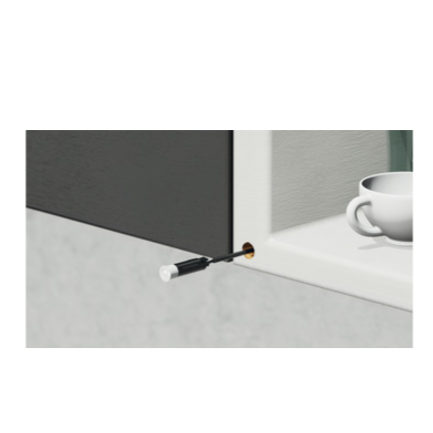

This Ø 12 mm switche can be recessed or surface mounted
Functions as dimmer sensor switch or door sensor switch can be changed via integrated microswitch
Colour adjustment with supplied cover sleeves

Version

adjustable as dimmer sensor switch (50-100%) or as door sensor switch (dimming value remains stored)

Switching contact

touchless

Control output ports

1 x, Loox switch

Colour/finish

White/Grey/Black

Switching function

On/off soft, touchless, Door open = light on, door closed = light off, Dimming

Memory function

Yes (also in currentless condition)

Drill hole Ø

12.00 mm

Length

44.50 mm

Sensor range

0 – 75 mm

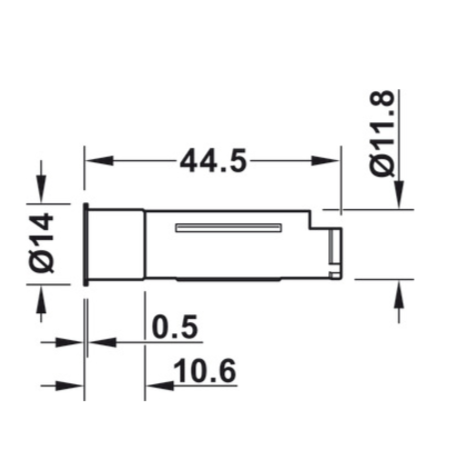

Dim. (Ø x L)

11.8 x 44.5 mm

Power consumption

0.30 W

Degree of protection

IP20

Installation

For mounting in drilled hole, or for plug fitting into housing

Installation reference

Coloured cover sleeve suitable for drill hole in furniture and housing

Order reference

Please order lead with snap-in connector for modular switches separately. Length 2 m: Cat. No. 833.89.142

Supplied with

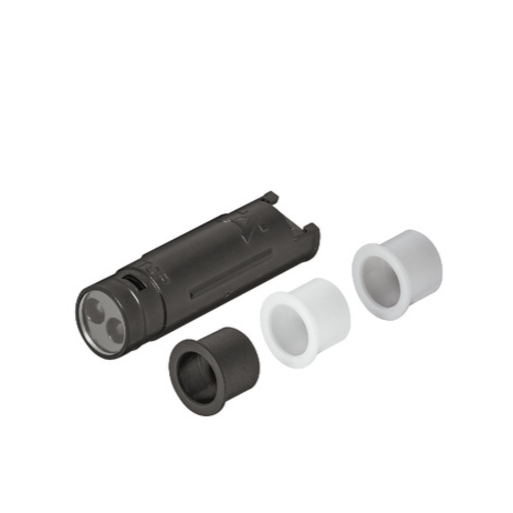

Consists of:
1x Adjustable sensor switch, black housing
3x Cover sleeves (1x each of white, grey, black)

Additional information attributes

The specification of the sensor range applies to white surfaces. With black surfaces, the range of the infrared sensor is halved, matt black surfaces can reduce the value further. Trial mounting is recommended. A white reflection surface can be glued to the inside of sliding doors.
