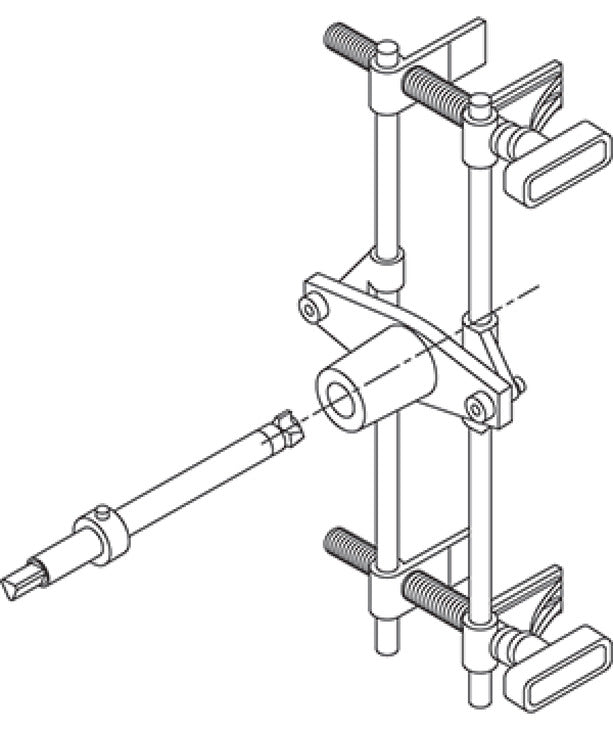

Mortice Jig, DBB

Use with a drill with 2,000-3,000 rpm with hammer action off and a 1/2" chuck
Max. door thickness (standard housing): 55 mm
Max. door thickness (special housing): 80 mm
Max. vertical movement (average 45 mm thick door): 240 mm
Door and frame with offset morticer max. 95 mm
Screw-on design precision, carbide tipped mortice wood cutters
Cuts lock forend as well as lock body
Self-centring action
Achieves an accurate depth of cut to hardwood and softwood doors
Also suitable for tubular latches, rack bolts and concealed door closers when used in conjunction with the plunging cutters
Vertical guides, height and depth stops mean you cannot over run the cut area

Supplied with
