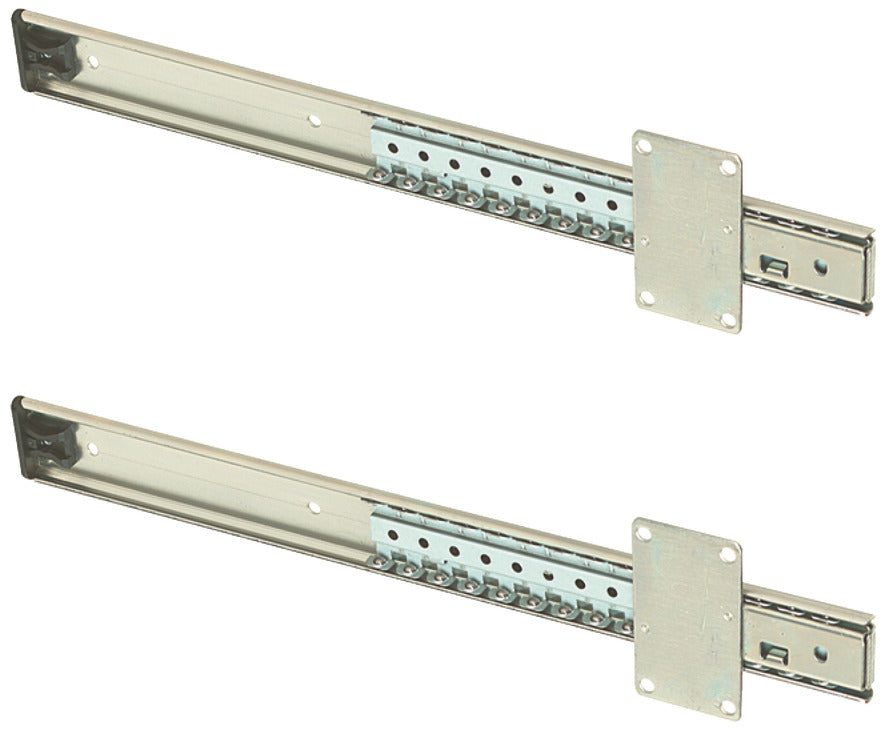

Pivot Sliding Door Runners, for Cabinet Doors, Accuride 1312
Unhanded design
Quiet and easy movement
Robust mounting plate for ease and security of door attachment
Maximum door extension allows ease of hinge operation
-
Door supports required when fitting horizontally
For inset use
Hinge carrrier strip, 15 mm thickness, to be supplied by customer
32 mm hole pattern
Area of application

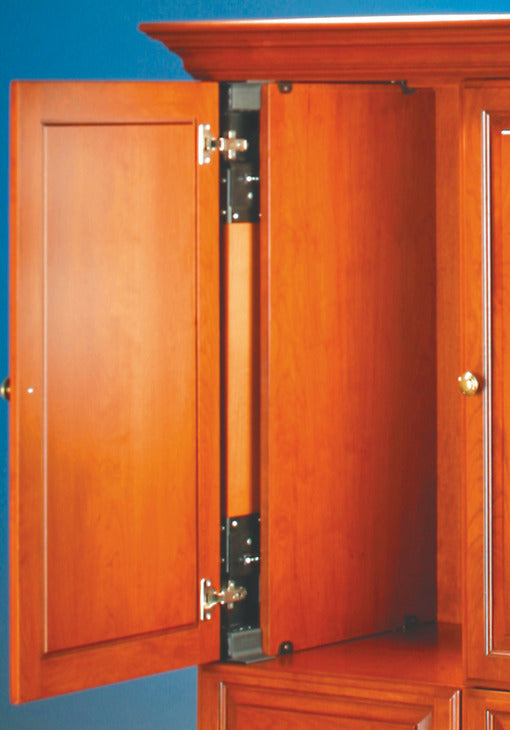

Inset cabinet doors
Material
Steel
Colour/finish
Bright zinc plated
For door weight
5.5 kg
For door height
≤900 mm
For door thickness
16 – 20 mm
Installation
Screw fixing
Order reference
Hinges and mounting plates to be ordered separately
